Formax V-STACK36 Vertical Stacker
Formax V-STACK36 Vertical Stacker
Formax V-STACK36 Vertical Stacker

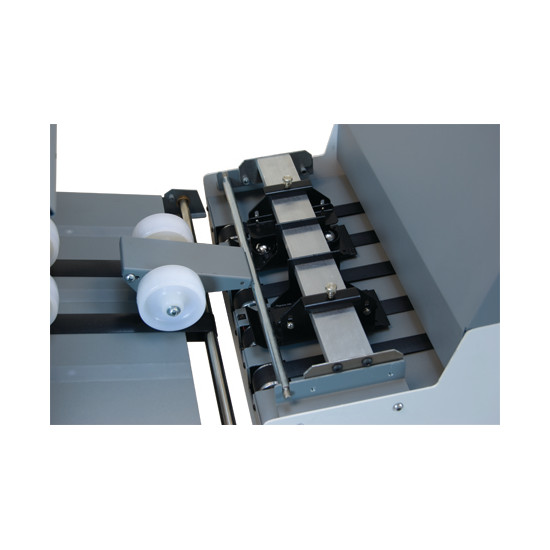

Guide wheels and six-ball-roller deck ensure forms enter the stacker smoothly

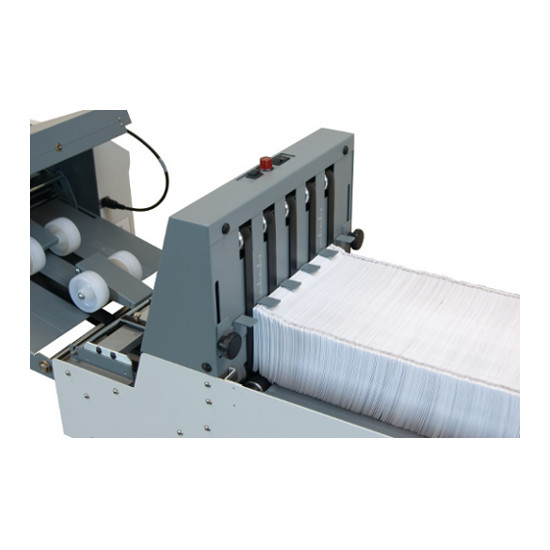

Vertical paper stop adjusts to document sizes and fold types up to 7"
Adjustable-height stand with casters for mobility. Optional for tabletop folders and pressure sealers

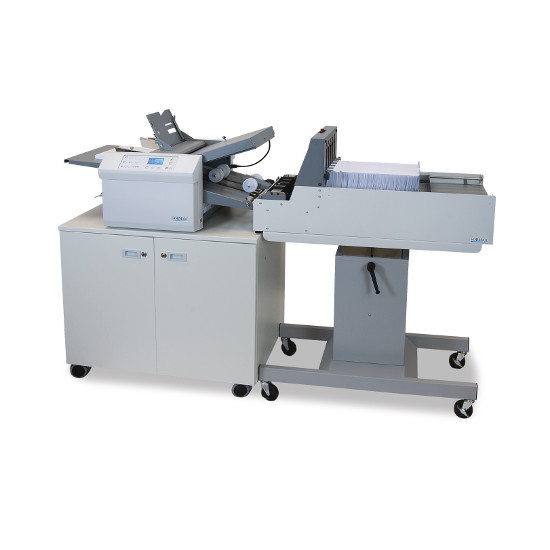

FD 38X Document Feeder, V-Stack36 Vertical Stacker, & optional V-Stack36-10 Adjustable Stand & cabinet. Note: Stand not required for use with Formax tabletop models. V-Stack36 infeed is designed to align with folder’s outfeed on a tabletop or Cabinet
Formax V-STACK36 Vertical Stacker Product Video

Formax V-STACK36 Vertical Stacker

Formax Paper Folder Accessory. The V-Stack36 stacker is designed to work with Formax high-capacity pressure sealers and tabletop folders.


Price: Login



Availability: In Stock - Call for Price

Part Number: FOR V-STACK36   Brand Name: Formax   Manufacturer Part Number: V-STACK36

The Formax V-STACK36 Vertical Stacker is designed to work with Formax high-capacity pressure sealers and tabletop folders. Unlike a traditional outfeed conveyor, it stacks forms vertically, providing a neat stack which is easier to unload for further processing.

With photo-eye activation, the V-Stack36 neatly stacks up to 22 inches of folded documents. The infeed features a six-ball-roller deck and two guide wheels to ensure forms enter the stacker smoothly, and an LED lamp which alerts operators when the stacker is near full capacity. Its vertical paper stop adjusts to accommodate document sizes and fold types up to 7”.

An interlock is available for FD 38X folders and FD 2054, FD 2094/2084 and 2200 Series pressure sealers, which automatically stops the stacker and the source machine when the stacker is at full capacity.

A height-adjustable stand with locking casters is available to align with a variety of inputs. The stand is optional for use with tabletop folders and pressure sealers, and required for use with production pressure sealers.

Standard Features

  • Compatible with FD 2054, FD 2094/2084, 2200 Series AutoSeal, and FD 382, FD 38X Folders. Contact your Account Executive for additional machine compatibility.
  • Neatly stacks up to 22 inches of folded documents
  • Photo eye activation
  • LED indicates when stacker is near full capacity
  • Infeed features six-ball roller deck and two guide wheels to keep processed pieces feeding smoothly
  • Run-out switch
  • Vertical paper stop is adjustable to accommodate document sizes and fold types up to 7”
  • Spring-loaded horizontal paper stop extends as forms are loaded
  • Interlock automatically stops the stacker and source machine when stacker is at full capacity (available for FD 38X, FD 2054, FD 2094/2084 and 2200 Series)
  • Options

  • Adjustable-height stand with casters for mobility. Optional for tabletop folders and pressure sealers. Required for use with FD 2094/2084 and 2200 Series
  • Brand Name:
    Formax
    Depth:
    14.25"
    Width:
    37.25"
    Height:
    16"
    Weight:
    73 Lbs
    Electrical:
    110 Volts AC 50/60 Hz
    Maximum Speed:
    Variable, depending on input machine
