Formax FD 3200 Air-Suction Feed Document Folder
Formax FD 3200 Air-Suction Feed Document Folder
Formax FD 3200 Air-Suction Feed Document Folder

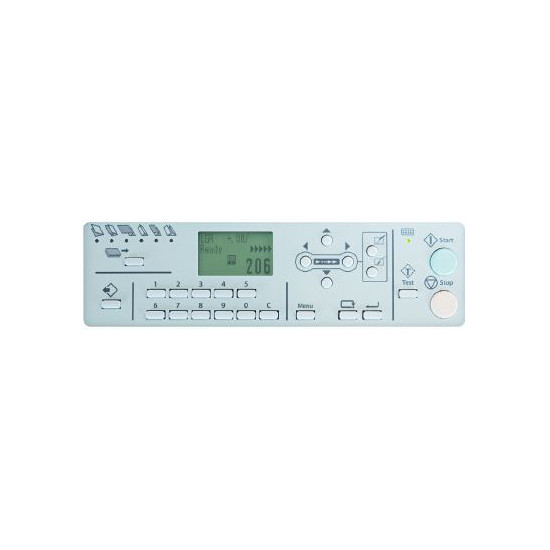

User friendly Control Panel, includes energy-saving mode

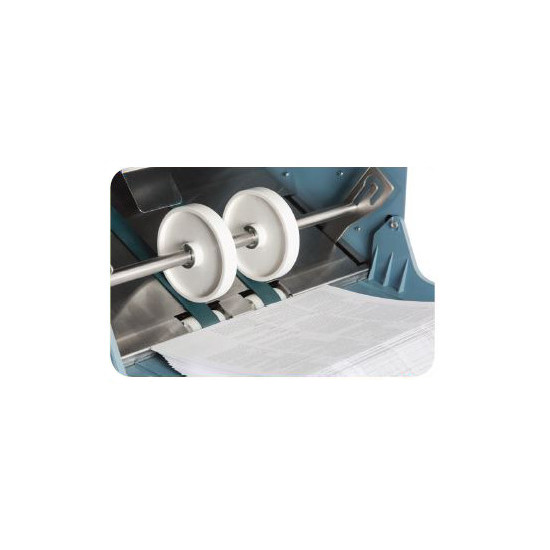

Outfeed Stacking Belt & Rollers: Automatically adjust to paper size. Two tray positions are available.

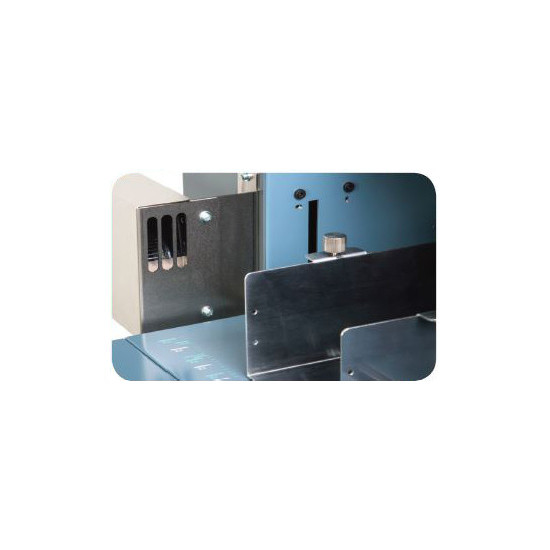

Optional Side Air Kit: Enhances feeding of heavy stock and large paper sizes.

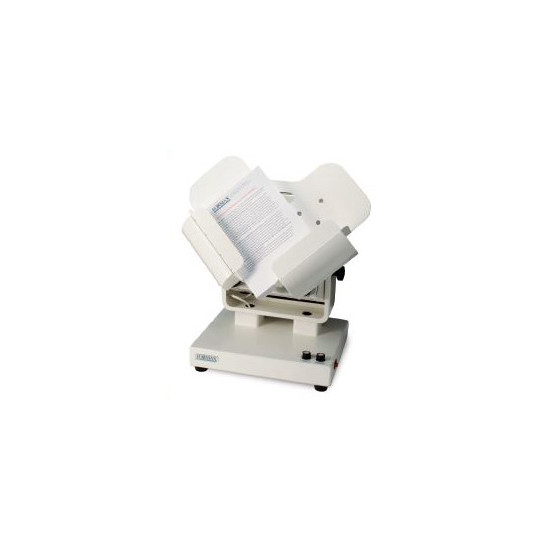

Optional FD 402TA1 Jogger: Air Jogger dries and reduces static electricity from forms and aligns them for proper feeding

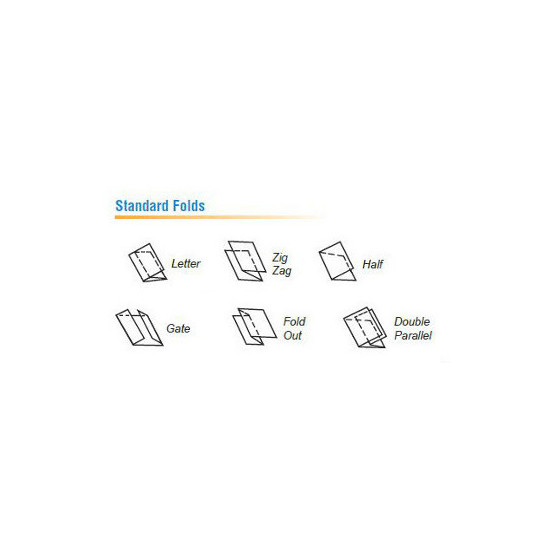

Standard Fold Types
FD 3200 Air-Suction Feed Document Folder Product Video

Formax FD 3200 Air-Suction Feed Document Folder

The FD 3200 folder offers high performance folding in a compact tabletop unit, ideal for digitally printed documents on heavy and coated stock.

GSA Pricing Price: Login

    We Will Meet or Beat Any Price - Click Here to Submit Your Pricing Information


    Part Number: FOR FD3200   Brand Name: Formax

    The Formax FD 3200 Air-Suction Feed Document Folder offers high performance folding in a compact tabletop unit, ideal for digitally printed documents on heavy and coated stock. The air-suction feed technology reduces static electricity and minimizes feed marks common in traditional friction feed systems. The FD 3200 utilizes internal fans to produce air and suction for quiet operation in a smaller footprint.

    With a speed of up to 15,600 sheets per hour, and a feed tray capacity of up to 625 sheets, the FD 3200 quickly powers through a range of applications, all at the touch of a button, while Optical Double Feed Detection ensures document integrity. To accommodate a variety of paper weights and sizes, fan speed and air flow can be adjusted independently using the interactive control panel and external adjustment knobs.

    User-friendly features include automatic paper size detection and fold plate settings, control panel with LCD display, six programmed fold settings, and the ability to store up to 20 custom folds. The FD 3200 includes a cross folding guide, a four-digit counter with batch counting capability, four fold rollers for accuracy, and a variety of document security features. An optional Side Air Kit is available to enhance feeding of heavier stock and larger sheets of paper.

    Fully automated and insulated for quiet operation, the FD 3200 is ideal for on demand printing in the office environment.

    Operating Features

  • Air-Suction Feed System: Designed to easily handle static buildup in digital prints and minimize feed marks
  • Control Panel with LCD Display: User friendly, includes energy-saving mode
  • Automatic Paper Size Detection: Recognizes the most popular paper sizes including letter, legal, ledger, half letter and half legal
  • Adjustable Air Flow: Allows for feeding consistency on varying paper weights / sizes
  • Optical Double Feed Detection: Ensures document integrity
  • Outfeed Stacking Belt & Rollers: Automatically adjust to paper size for optimal stacking
  • Batch Counting: Programmable to process pre-set number of sheets into sets with a delay between sets
  • Idling Function: Standby mode used to pause for double or misfeed. All other functions are still operational, minus the output drive
  • Folding Features

  • Pre-Programmed with 6 Standard Folds: C, Z, Half, Fold Out, Gate and Double Parallel
  • Custom Folds: Up to 20 custom folds can be programmed and stored into memory
  • Cross-Folding: A guide is included for two-pass operation
  • Technical Features

  • Noise Reduction: Fold plates are enclosed and insulated to reduce operating noise
  • Built-in DC Fans: Provide quieter operation than external pumps
  • Seven-Point Fold Stops: Fold plates utilize seven point fold stops for crisp, accurate folds of large paper sizes at high speeds
  • Four-Digit Counter: Includes addition, batch and interval counting
  • Adjustable Stack Height Lever: Five positions can be easily chosen to increase or decrease paper stack height to better feed thick and thin paper stocks
  • Four Fold Rollers: Produce crisp, precise folds
  • Fault Detection Features: Paper Out, Misfeed, Double Feed, Paper Jam, Top Cover Open, Paper Size Error
  • Easy Access to Paper Path: Easily clear paper jams
  • Options

  • Side Air Kit: External fan to enhance feeding of heavy stock and large paper sizes
  • 402 Series Air Jogger: Reduces static electricity and aligns forms for proper feeding
  • Brand Name:
    Formax
    Depth:
    47"
    Width:
    23"
    Height:
    21.3"
    Weight:
    144 Lbs
    Acceptable Paper Size:
    4.73" x 7.17" to 12.24" x 18.0"
    Acceptable Paper Weight:
    Up to 85 pound paper
    Electrical:
    120-240 Volts AC 50/60 Hz
    Fold Types:
    Double Parallel, Fold-Out Fold, Gate Fold, Half Fold, Letter Fold/C-Fold, Zig-Zag Fold
    Friction or Air Feed:
    Air Feed
    Maximum Speed:
    Up to 15,600 sheets per hour
    Sheet Capacity:
    625
